A.L 2017 New Design Carding Machine

Min. Order:
Delivery Time:
60 Days
  • Product Description
Product Attributes

Model No.ALSL-2500


Supply Ability & Additional Informations

Packagingpartical packing with wooden case

Place of OriginZhejiang, China (Mainland)

Delivery Time60 Days

Packaging & Delivery
Package Type:
partical packing with wooden case

 A.L 2017 New Design Carding Machine


Detailed information

Mechanical type: double cylinder double doffer four random

Proper fiberspecification:0.5D -20D

Output line speed:15~45m/min

Main cylinder diameter 1230mm with 5 sets working zones.

Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function.

Installed with 7 sets frequency changer to control the feeding, first cylinder,main cylinder, middle doff, back doff ,inner random, outer random

Two layers output, the lattice is PVC lattice

Top cover with PC material,and lifting with air pressure

4kw motor suction edge fan on each side of the machine

Bottom with conveying dust collection, together with the dust collection of the Vibrating Feeder.

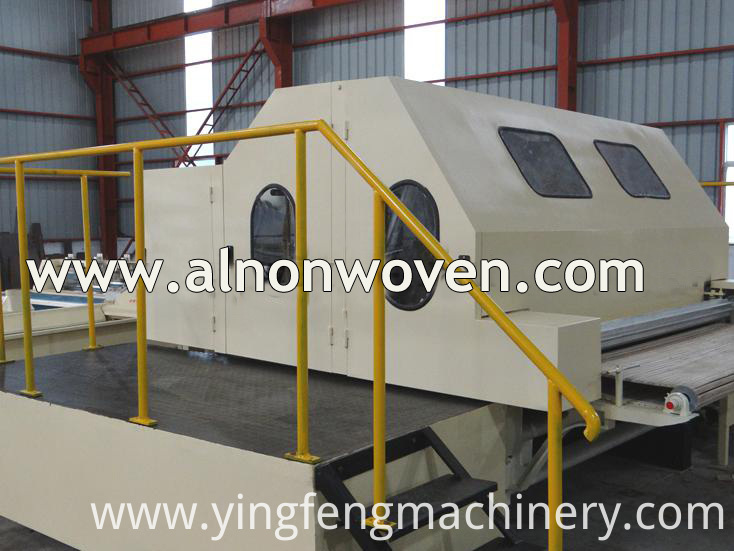

Product show

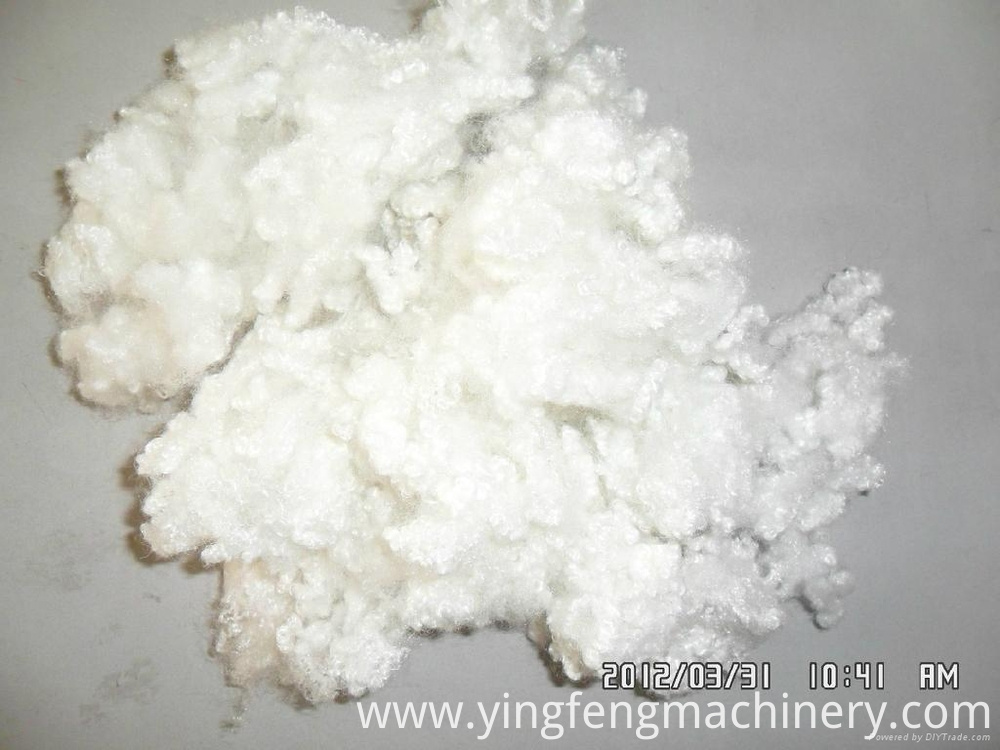

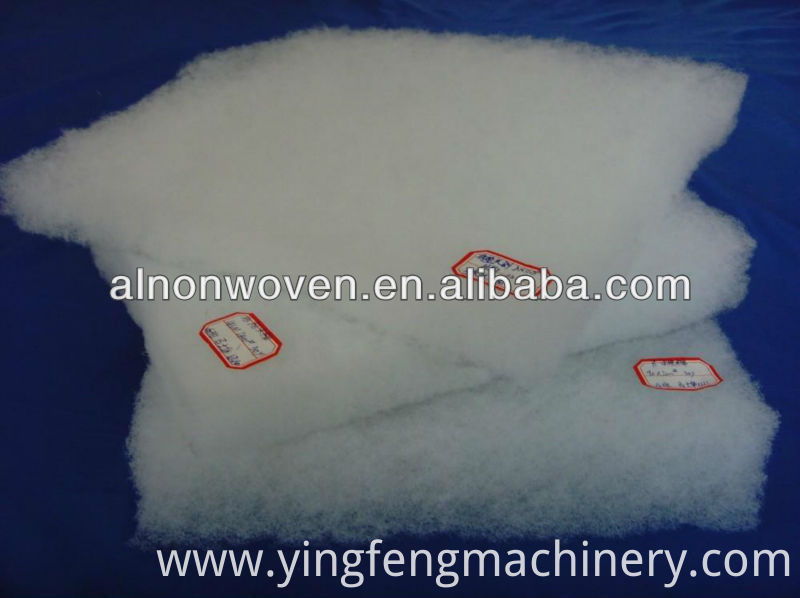

This kind of carding machine can used to carding Polyester,Polypropylene,Cotton and old fabric.

Packing & Delivery

Container Suitable for export


Contact Us

We are looking forward to see your inquiry.

Every customer is very important to us,if you have any question ,please contact me.



Looking for ideal Carding Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Carding Machine for Cotton are quality guaranteed. We are China Origin Factory of Fiber Carding Machine. If you have any question, please feel free to contact us.
