ZHEJIANG YINFEN GROUP

2014 new s.ss.sms nonwoven machine

2014 new s.ss.sms nonwoven machine

Delivery Time: 30 Days

Contact Now Add to Basket

Basic Info

    Model No.: AL-2013NEW PP NONWOVEN MAHCINE

Additional Info

    Packaging: EXPORT STANDARD PACKING

    Brand: AL

    Place of Origin: Zhejiang, China (Mainland)

Product Description

Specifications

s.ss.SMS Nonwoven Machine
1.make pp nonwoven fabric
2.PP spunbonded nonwoven machine
3.Highly automated,easy to operate

2014 new s.ss.sms nonwoven machine

A.Material:PP chip
B.Weight range:9-250gsm



C. the whole line is well-structured and easy to operate



D.The whole line highly automated



E.Control elements are of well-know make ,high performance and reliable technologies



F.The whole line are controlled by PLC and operated with touch -scree

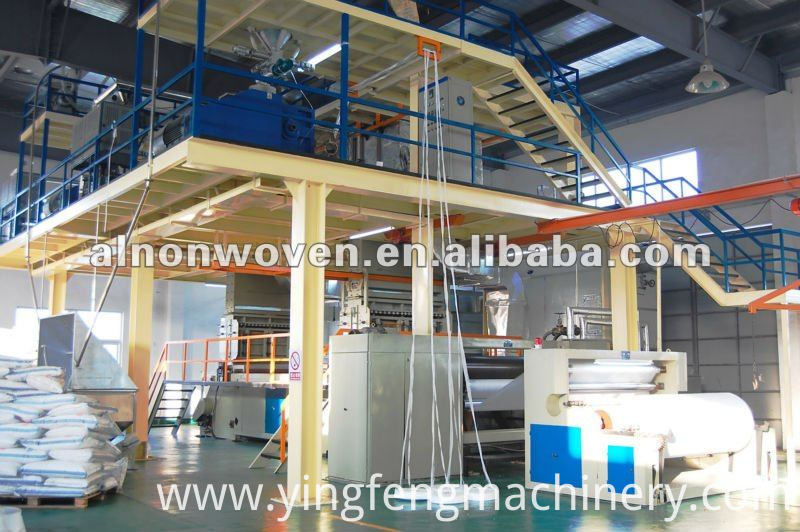

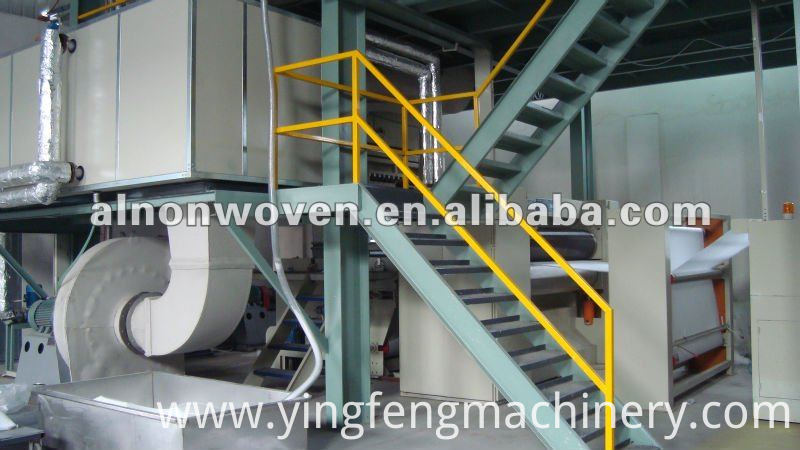

The line is application for PP chips as raw materials input, undergoes the process of extrusion, spinning, quenching, closure air stretching, web formation, calendaring, winding and cutting as per requirements and then packed for storage and delivery.

G.Process of the production line

Raw material→Pellet feeding→Melting and Extruding→Filtration→Metering→Spinning→Air drawing→Web forming→Thermal calendering→straining→Rolling up→Cutting and packing (As per the attached design)



H.Features:
1)It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labor and widely compatibility and so on.
The equipment produces non-woven fabric with polypropylene(PP), adopts the technology of formating the web by negative pressure, make into PP spun-bonded non-woven fabric, the product is featured by uniform cover, great intensity, good ventilation and good feeling and so on. It has been in wide use in medical clothes, package and architecture and so on.

2)The lower investment can reduce some unnecessary additional auxiliary facilities, and under the conditions of guaranteeing the technology requirement and safe production, can reduce the cost of the manufacture, so that we can reduce the investment lower.

3)Its easy and reliable to making technics adjustment, the line adopts the method of computer controlling assistant systems combines with human control to make the technics adjustment become more easier and reliable, and the machine can adapt to different raw materials to gain more widely usage.

4)The requirement of the workshop and equipment is very simple, it reduces the fixed assets investment, and efficiently take the advantage of the room of the platform, and enlarge the utilization of the workshop and the steel platform.

5)More specialty in processing the main equipment increasing the procession precious and capacity of the machine, this reduces the manufacture cost and to undertake the quality of the product more well.



I.Raw material specifications (PP granule)



Item

Unit

Technical index

Length

mm

3~4

Degree of isotacticity

%

≥95

Density

g/cm3

0.78~0.8

Melting point

°C

164~166

Melting range

°C

Inside 5°C

Ash content

ug/g

<200

Melting index

g/10min

20~40

Content of water

%

<0.05

J. Capacity:

MODEL NO WORKING WIDTH ANNUAL OUTPUT
AL-1600S 1600mm 1500T
AL-2400S 2400mm 2400T
AL-3200S 3200mm 3000T
AL-1600SS 1600mm 3000T
AL-2400SS 2400mm 4800T
AL-3200SS 3200mm 6000T
AL-1600SMS 1600mm 3500T
AL-2400SMS 2400mm 5000T
AL-3200SMS 3200mm 6500T











Our Faith:low starting point,low cost,high quality,high return.



Value appraisal is made by customers,satisfactory service is provided by AOLONG (AL)



Looking for ideal S.ss.sms Nonwoven Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PP Spunbond Nonwoven Machine are quality guaranteed. We are China Origin Factory of Pp Spunbonded Nonwoven Fabric Making Machine. If you have any question, please feel free to contact us.
